Avtex AMR104X 4G Dual SIM Mobile WiFi Router & Antenna

Specifications

• Brand: Avtex
• Model: AMR104X
• Product Type: Mounted mobile internet router and antenna package
• Mobile Network: 4G LTE CAT 6
• Maximum Mobile Data Speed: Up to 300 Mbps
• SIM: Dual SIM
• Network Lock: Unlocked for use with suitable networks
• Display: 2.8" LED colour display
• WiFi Connectivity: Can connect to an existing WiFi network
• Connected Devices: Supports multiple devices simultaneously
• Antenna: High-gain 4-element MiMo antenna
• Antenna Network Compatibility: 3G / 4G / 5G
• Antenna Type: Low-profile omnidirectional
• Use While Travelling: Antenna designed to work while moving or stationary
• Power Supply: 12V / 24V DC
• Power Switch: DC on/off isolating switch
• Remote Management: Supported
• Automotive Certification: E-mark certified
• Mains Operation: Optional mains adaptor available separately
• Recommended Use: Caravans, campervans and motorhomes

Features

• CAT 6 4G performance up to 300 Mbps provides a fast mobile internet connection suitable for streaming, browsing and general online use where network conditions allow.
• Dual SIM slots let you use SIMs from different networks, helping you choose the most useful coverage or data plan while travelling.
• Fully unlocked router gives you flexibility to choose a suitable mobile network rather than being tied to one provider.
• Can switch from mobile LTE data to an existing WiFi connection, useful for making use of campsite WiFi and reducing mobile-data usage.
• 2.8-inch colour display lets you quickly view useful information including signal strength, service provider and monthly data usage.
• High-gain 4-element MiMo external antenna is designed to improve reception compared with relying solely on a device inside the vehicle.
• The external antenna supports 3G, 4G and 5G, providing compatibility with current mobile signal technologies even though the AMR104X router itself uses 4G CAT 6 for its mobile-data connection.
• Supports multiple connected devices, allowing phones, tablets, smart TVs and other WiFi devices to share the internet connection.
• 12V / 24V operation is well suited to permanent installation in leisure vehicles.
• DC isolation switch allows the router to be completely switched off when not required, helping avoid unnecessary leisure-battery consumption.
• E-mark certification makes the system suitable for automotive installation.

Description

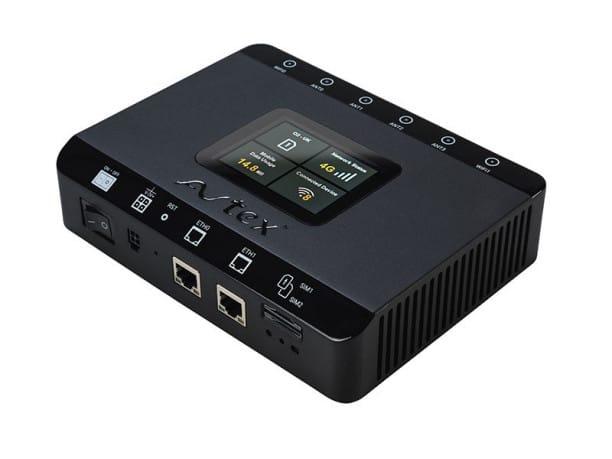

The Avtex AMR104X 4G CAT 6 Dual SIM Mobile WiFi Router & Antenna is a permanently mounted internet solution designed specifically for caravans, campervans and motorhomes. Combining a CAT 6 4G router with a high-gain external MiMo antenna, it provides a central WiFi connection that can be shared between multiple devices inside your leisure vehicle.

The router supports mobile-data speeds of up to 300 Mbps, subject to your network, signal strength, SIM plan and local coverage. Its dual SIM slots allow you to carry SIMs from two suitable networks, giving you greater flexibility when travelling and making it easier to change provider when coverage or roaming costs make another network preferable.

A useful feature for campsite touring is the ability to connect the AMR104X to an existing WiFi network when one is available. This means you can use campsite or other suitable WiFi instead of your mobile-data allowance, while your devices continue to connect through the Avtex system.

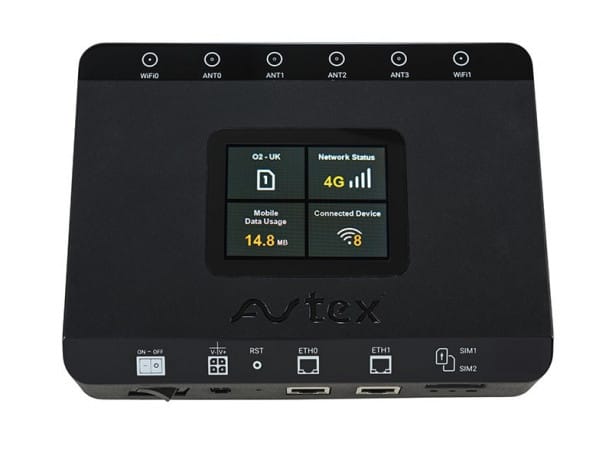

The built-in 2.8-inch colour display makes the system easier to manage without relying solely on an app, showing information including signal strength, network provider and monthly data usage.

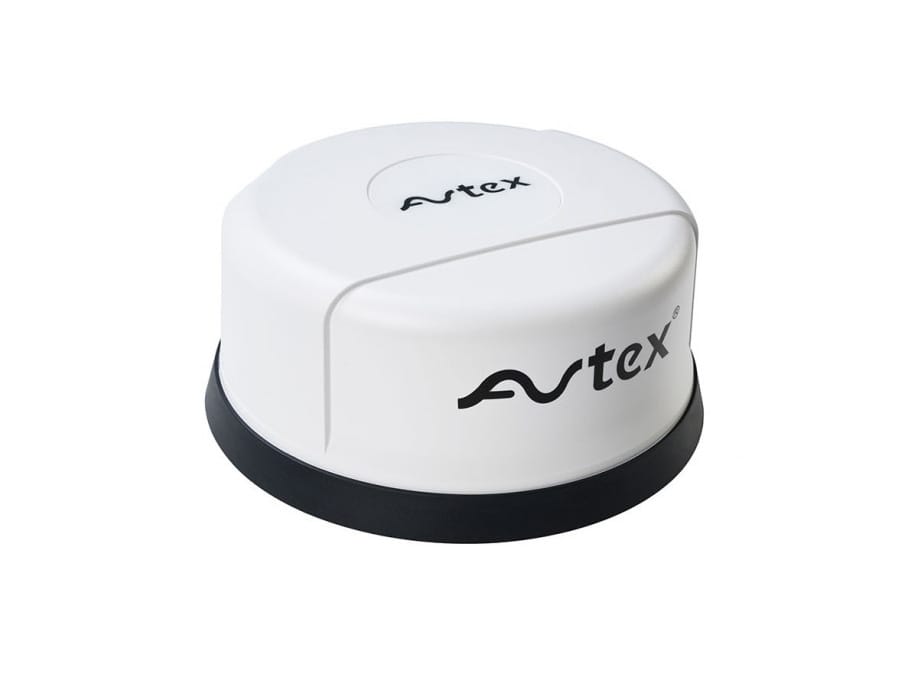

Mounted externally, the low-profile high-gain 4-element MiMo antenna supports 3G, 4G and 5G signals and is designed to operate whether the vehicle is stationary or moving. It is worth making the distinction that the AMR104X router is a 4G CAT 6 router; it is the antenna that is 5G compatible.

The system operates directly from 12V or 24V, making it well suited to leisure-vehicle installation. A DC isolation switch lets you fully turn the router off when it is not required, helping reduce unnecessary battery drain.

You will need a suitable active SIM and mobile-data plan to use the LTE connection. Network availability and actual connection speeds will depend on the mobile provider and signal available at your location. A mains adaptor is optional and not included.

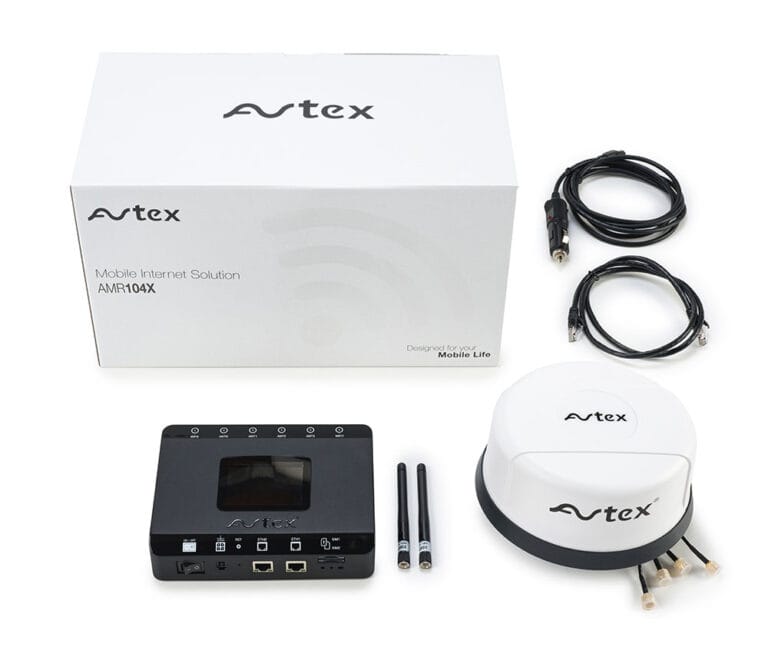

Contents: Avtex AMR104X CAT 6 router and high-gain 4-element external MiMo antenna package
