Purpleline Kojack Caravan Jack - Single

  • £84.99

Available on orders over £100


Description

Does your caravan have a jacking point? kojack is the answer.

Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your caravan chassis; which can void your warranty. Kojack fits 99% of caravans.

“Wherever you park your motorhome or caravan you can always have the perfect pitch.

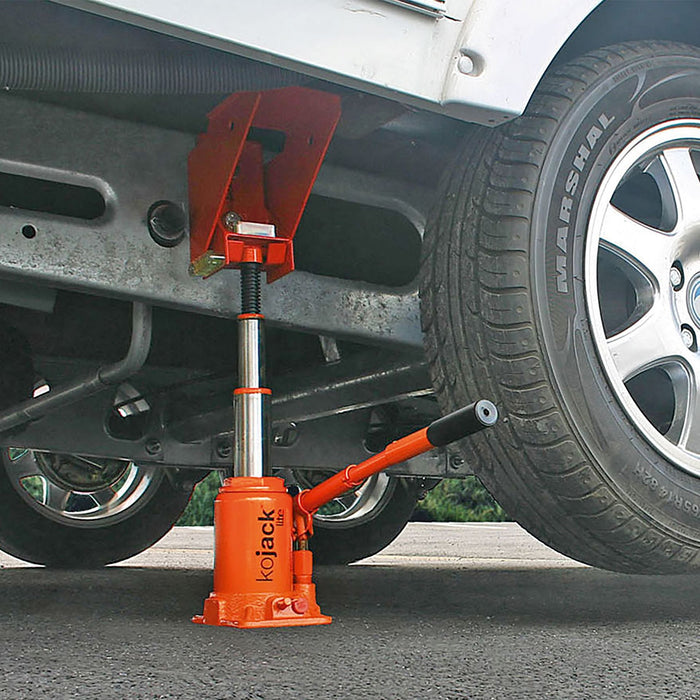

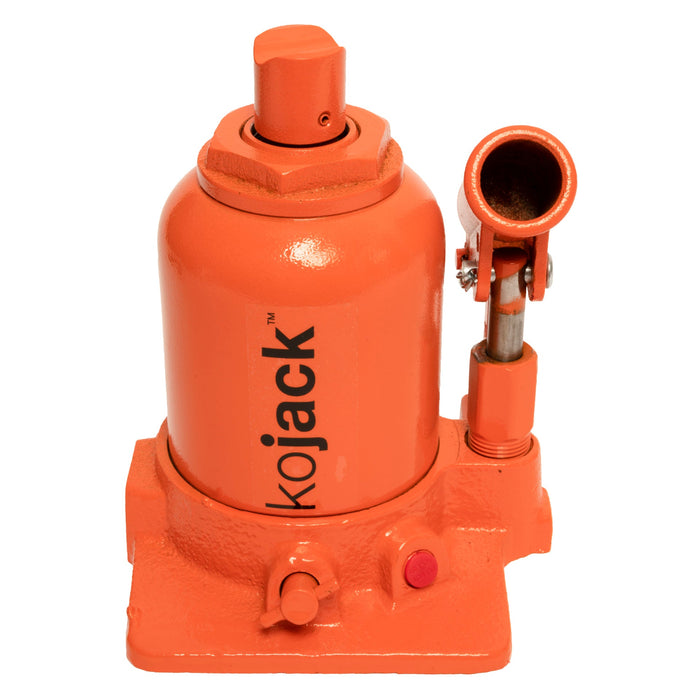

Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt in to pre-existing holes that are standard on most AL-KO & BPW chassis.

Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.

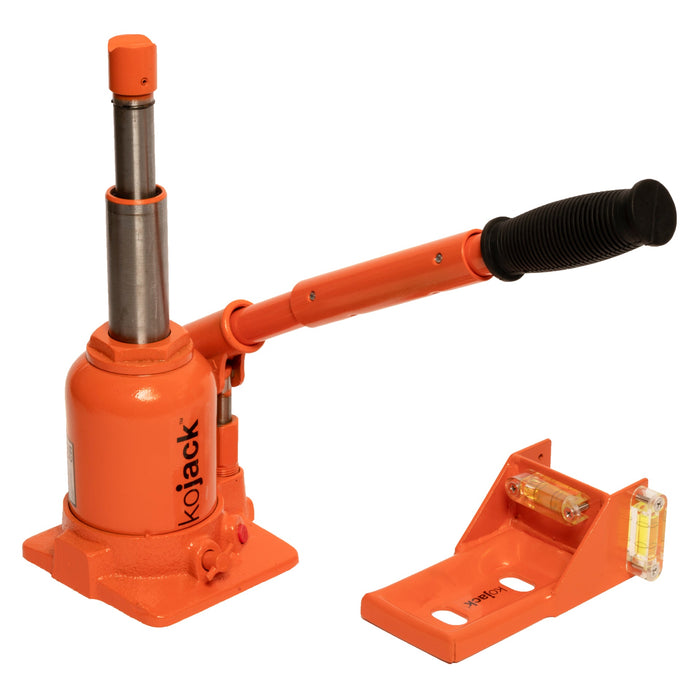

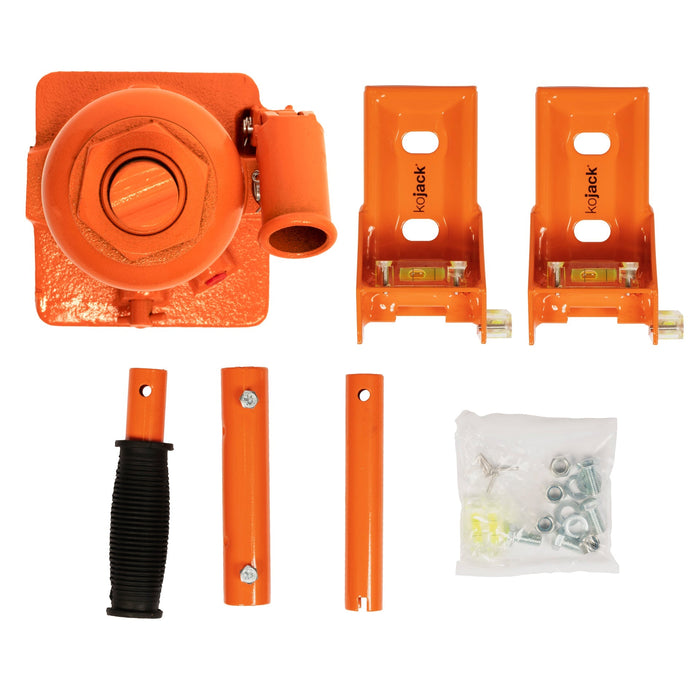

The kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels and all necessary fittings an fixings.

Kojack Hydraulic caravan jack & levelling system…. Quick wheel changes and the perfect pitch.


Specifications

Total Weight: 6.1kg
Jack Weight: 4.7kg
Jack Compressed Height: 170mm
Jack Extended Height: 390mm
Jack Width: 140mm
Jack Depth: 130mm
L-Bracket Weight: 0.7kg
L-Bracket Height: 155mm
L-Bracket Width: 95mm
L-Bracket Depth: 60mm
No. of L-Brackets in Box: 2
V-Bracket Weight: 1.4kg
V-Bracket Height: 150mm
V-Bracket Width: 110mm
V-Bracket Depth: 180mm
No. of V-Brackets in Box: 0
Spirit Levels: Yes
Safe Working Load: 2000kg
Hole Spacing (From Centre): 55mm
Total Vehicle Weight: 4000kg
