Purpleline Kojack Twin Axle Hydraulic Caravan Jack
Description
Does your caravan have a jacking point? Kojack is the answer.
Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your caravan chassis; which can void your warranty. Kojack fits 99% of caravans.
“Wherever you park your motorhome or caravan you can always have the perfect pitch."

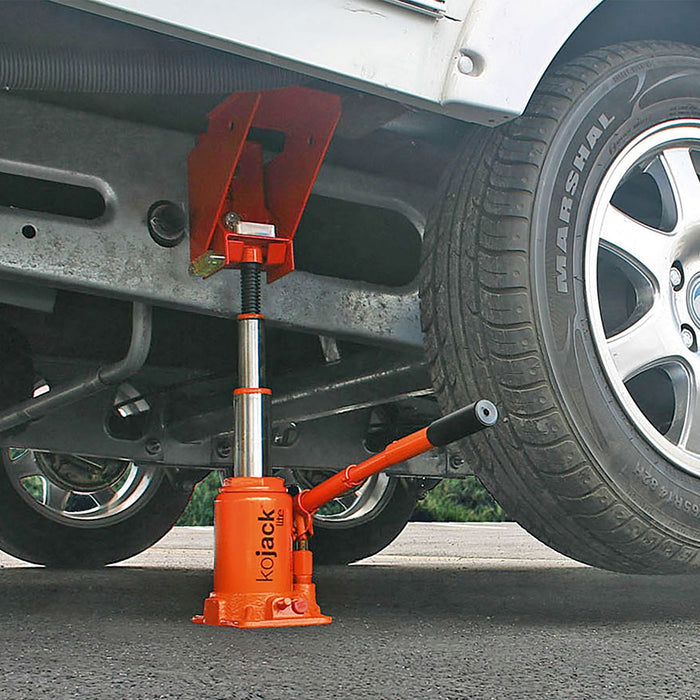

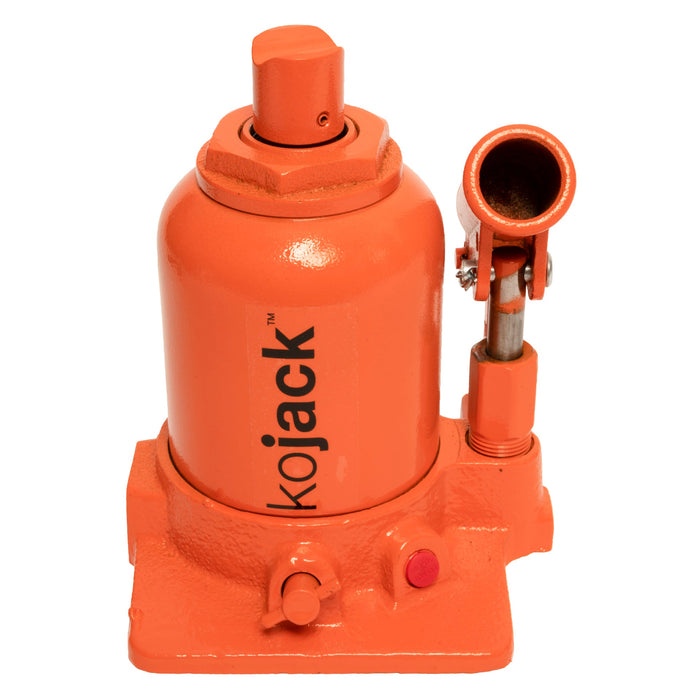

Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt into pre-existing holes that are standard on most AL-KO & BPW chassis.
Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.

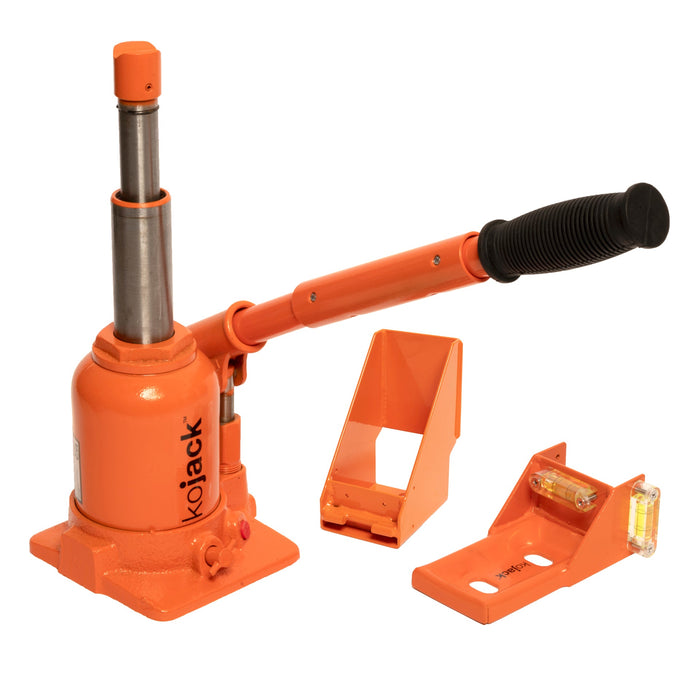

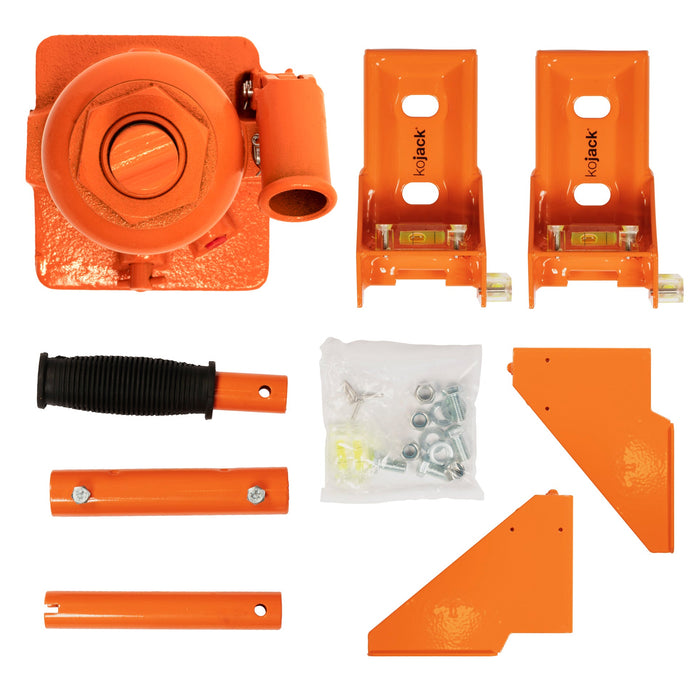

The Kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels, 2 x additional support brackets (twin axle version) and all necessary fittings an fixings.
Kojack Hydraulic caravan jack & levelling system…. Quick wheel changes and the perfect pitch.
Specifications
Total Weight: 8.9kg
Jack Weight: 4.7kg
Jack Compressed Height: 170mm
Jack Extended Height: 390mm
Jack Width: 140mm
Jack Depth: 130mm
L-Bracket Weight: 0.7kg
L-Bracket Height: 155mm
L-Bracket Width: 95mm
L-Bracket Depth: 60mm
No. of L-Brackets in Box: 2
V-Bracket Weight: 1.4kg
V-Bracket Height: 150mm
V-Bracket Width: 110mm
V-Bracket Depth: 180mm
No. of V-Brackets in Box: 2
Spirit Levels: Yes
Safe Working Load: 2000kg
Hole Spacing (From Centre): 55mm
Total Vehicle Weight: 4000kg
Video
FAQ
Q. Can I use KOJACK® to lift my caravan so I can work on the underneath it?
A. KOJACK® is a perfect solution to lifting your caravan for quick wheel changes. However, you should not work underneath a caravan whilst it is supported by only a KOJACK®. Once lifted you should always use secure blocks to steady the caravan.
Q. Is the KOJACK® suitable to level my caravan?
A. The KOJACK® bottle jack can be used to level your caravan on uneven ground - the brackets contain useful spirit levels to assist. However once lifted and level you should always use secure blocks/chocks to support the caravan. Never enter the caravan when only the KOJACK® is supporting the weight of the caravan. The KOJACK® bottle jack is not designed to support the weight of your caravan once it is level. You could also consider the KOJACK® leveller
