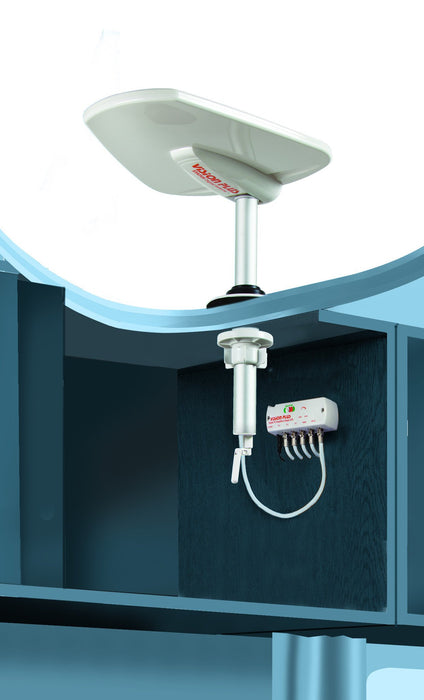

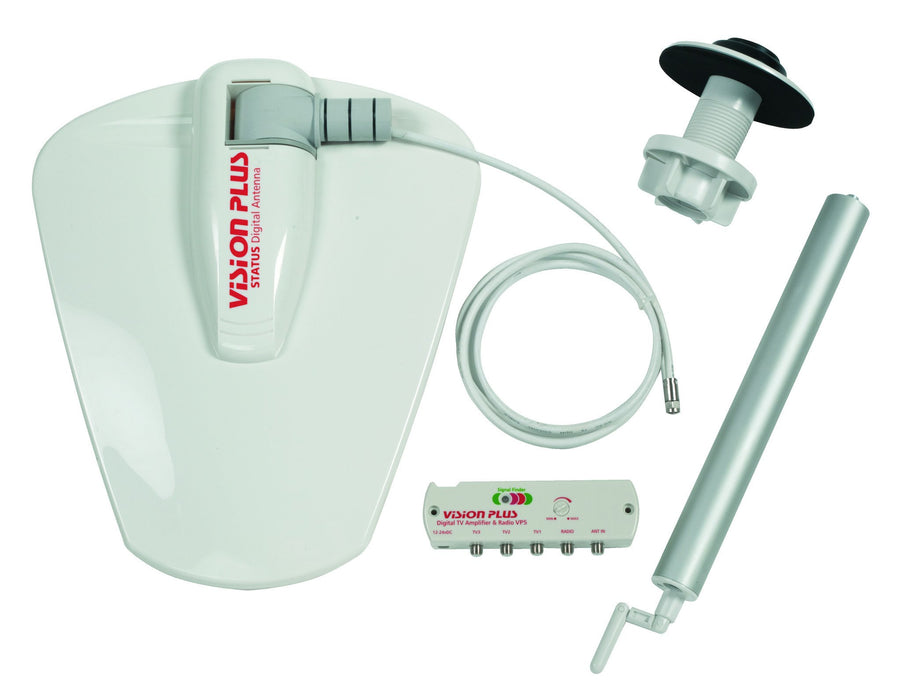

Vision Plus Status 570 Directional TV / Radio Antenna System

  • £145.95


For more than 10 years the Status 530 TV Antenna has led the way but as we enter this new Digital era Vision Plus have taken up the challenge to develop something which includes a host of new features which will also allow you to tune in your TV in seconds – The all new Status 570!

New features

  • Unique integrated TV Signal Finder
  • Horizontal & Vertical Polarisation Indicator
  • Low Profile Roof Assembly
  • DAB & FM Radio Reception
  • Fixed FM radio antennas
  •

    At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder.

    With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology and features:

  • Slim-line compact design
  • Digital TV, DAB and FM Radio reception
  • Dedicated TV Transmitter locator – Signal Finder
  • LED light power indicator with red, yellow and green colours to indicate signal strength
  • Variable Gain Control for strong and weak signal areas
  • 2 TV Connections and 1 dedicated Radio connection
  • 12 – 24V DC Power Input connection
  • Antenna IN connection
  • On / Off Power switch
  • 3 year guarantee
  • Specifications

    Frequency Range - UHF 470-790 Mhz / FM 88-108 Mhz / DAB 175-230 Mhz
    Antenna Forward Gain - 7db
    Gain Adjustment - 15 db
    Noise Figure - 2.8 db
    Output Impedance - 75 ohms
    Output - 92 dbuv
    Power Supply - 12-24 v DC
    Power Consumption - 90 ma
    Signal Outputs - 3 TV, 1 Radio
    Mast Length - 330mm
    Mast intrusion into locker - 305-280mm
    Antenna dome Installed - Length 412mm - Width 348mm - Height 108mm
    Mounting Foot & Gaiter - Diameter 122mm - Height 35mm - Roof cavity range 25-50mm
